Waking up has never been easier with Alarm clock BE 1580.

With the alarm clock from Bellman & Symfon you no longer have to worry that you might oversleep. Choose to wake to a loud alarm, bright ashes or powerful vibrations under the pillow. Perfect if you have a hard time get- ting out of bed or have trouble hearing.

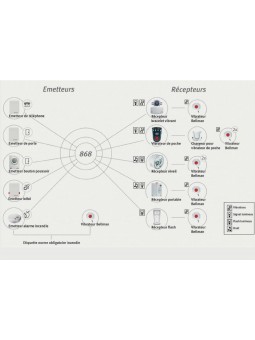

The alarm clock is part of the Visit smart home system and will also wake you when the doorbell or telephone rings, when your baby needs you or if a re should occur. It features a night light that guides you back to bed if you are up at night, and a smart snooze function that reduces the time inter- vals from 9 to 2 minutes.

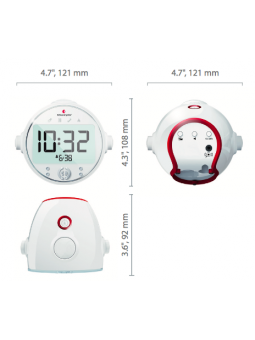

The audible alarm uses di erent sound frequencies, so whether you nd high or low pitched sounds hard to hear, there will be a tone to suit you. It has a large LCD display with adjustable back light and two separate dials for setting the time and alarm.

In addition, you can connect the alarm clock to your telephone to amplify the ring signal or connect it to a door entrance contact mat.

Output signals
- Sound 100 dBA @ 4”, 10 cm, 94 dBA @ 12”, 30 cm Built-in multiple frequency signal with a main frequency of 950 Hz - 3000 Hz
- Flash 4 high-intensity pulsating LEDs Warning! Flashes can cause epileptic seizures
- Bed shaker Vibrator power: 2.0 - 4.0 VDC Emits a sound

Visit indicators
The Visit LEDs normally indicates the following:
- Orange LED, paci er symbol The baby monitor is activated
- Green LED, door symbol The door transmitter is activated
- Yellow LED, telephone symbol The telephone transmitter is activated
- Red LED, re symbol The smoke alarm is activated

The BE1480 Smoke Alarm

It can be used in a BE1460 Bellman Visit Fire Alarm System. The fire alarm system provides increased safety because the radio link is monitored and a warning is provided if there is a fault. Refer to the Guard Receiver Manual for more information.

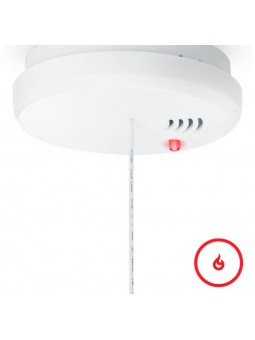

The BE1480 Visit Smoke Alarm is a radio transmitter within the Bellman Visit System for indoor use, which detects smoke and heat. The Smoke Alarm does this even more reliably than smoke alarms which only have one of these functions. When smoke and abnormal heat is detected, the Smoke Alarm will transmit a fire alarm signal to all Visit receivers which are within its range while chirping like a normal smoke alarm.

Technical information

Power supply Battery power: 9 V battery: Duracell MN1604 Energizer 522 or Ultralife U9VL-J

Operating time:

Duracell MN1604/Energizer 522
On the Visit System: Approximately 3 years
On the Fire Alarm System: Approximately 2 years

Ultralife U9VL-J
On the Visit System: Approximately 6 years
On the Fire Alarm System: Approximately 4 years

Power consumption: Active: 40 mA; Idle position: < 10 μA

Radio function
Radio frequency: 868,3MHz
Number of Radio Keys: 64 Radio Keys as standard. Special software can be used to increase these to 256 Radio Keys in increments of 64 per software purchase. Contact the nearest supplier for further information.
Coverage: The normal coverage between a transmitter and receiver in the Bellman Visit 868 System is approximately 200 metres with a clear line of sight. Coverage is reduced if walls and large objects screen off the signals. Any thick walls constructed of reinforced concrete will greatly affect coverage. The system may also be affected by radio transmitters such as TV transmitters, computers, mobile phones, etc. This means that a unit may work perfectly in one part of the room but not at all in another.
Antenna: The antenna should be straight and pointed directly down to achieve best coverage between Smoke Alarms and receivers within the Visit System.
Activation:
- Via Test Button
- Via the built-in smoke detector
- Via the built-in temperature sensor, if the temperature exceeds approx. 57°C.

Additional information
For indoor use only

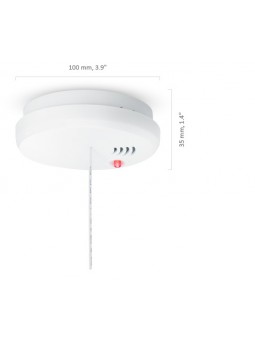

Dimensions Ø x H: 100 x 35 mm
Weight: With battery: 110 g Without battery: 70 g
Colour: White

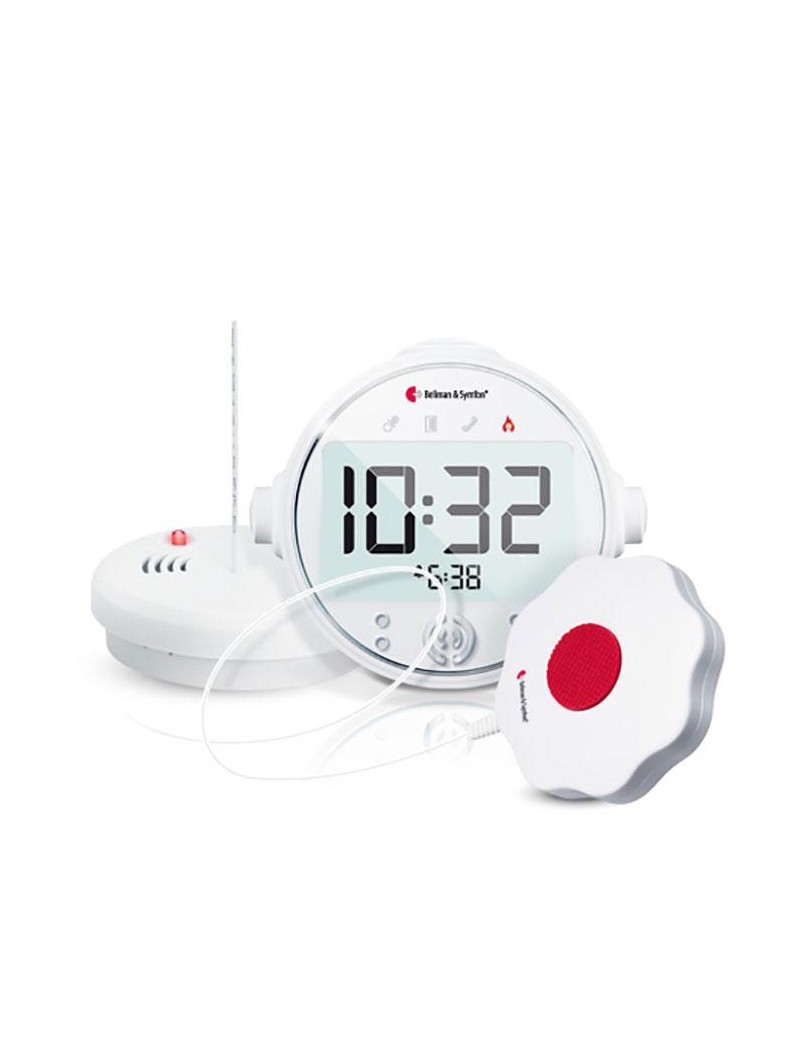

In the Box:
- Alarm Clock Visit model
- Power adapter
- Visit smoke detector
- Bed shaker
-User manual
