Pack

Pack Bellman Care Bellman Visit 868 BE1441 & BE1420

€386.00

VAT included

Read the review

Average rating: 5/5 - Number of reviews: 1

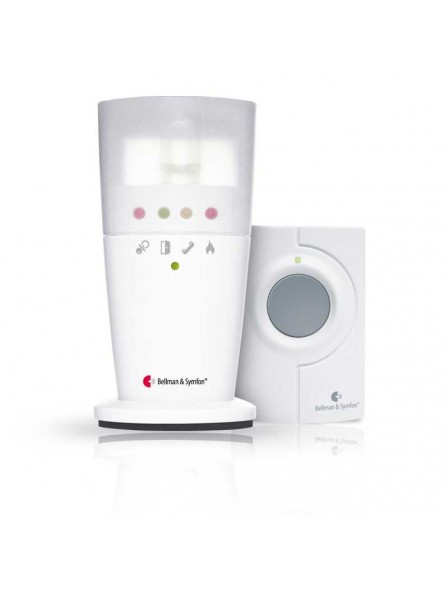

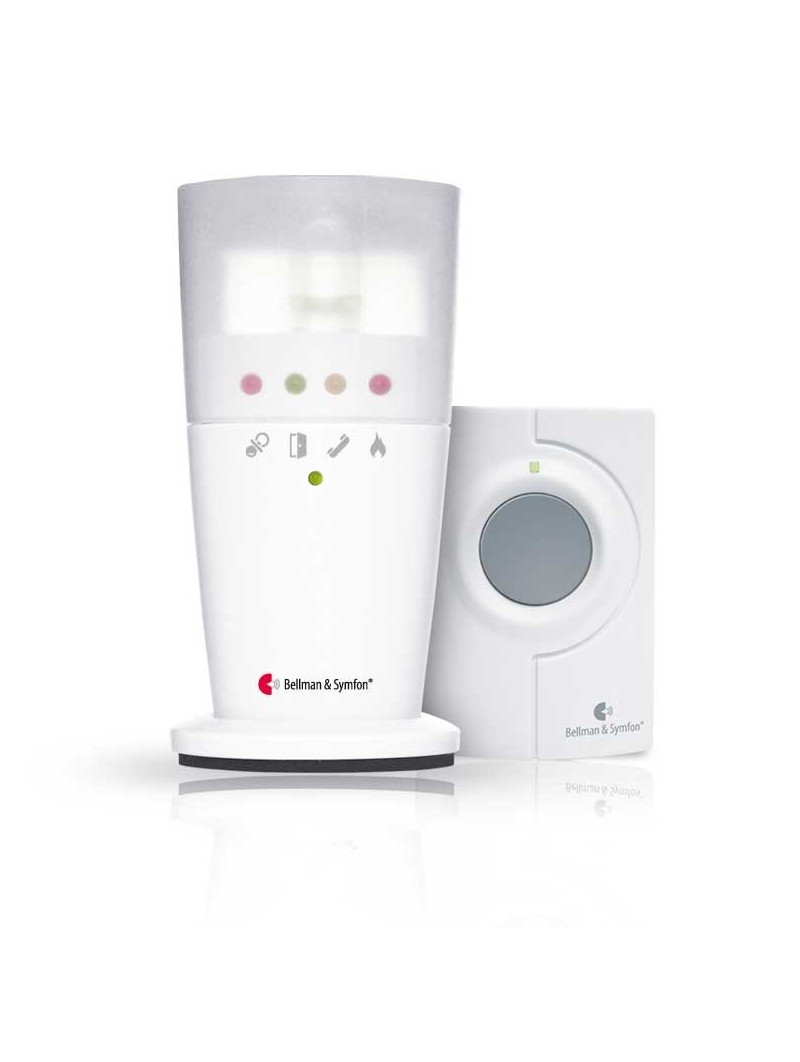

This solution will notify you with bright flashes and colored lights when the doorbell rings or when someone tries to reach you over the phone - even if you are several rooms away. It includes a wireless doorbell and telephone cable that is connected to a flash receiver.

FEATURES
Wireless Up: to 200 m operating range (free field)
Easy set up :Includes everything you need to get started
Rotating top Easy to direct the flashing lights
Robust and reliable : Approved by hearing healthcare authorities
Expandable: Easy to add other Visit products

This pack contains

Flash lumineux Bellman Visit 868 BE 1441 pour sourds et malentendant

Flash Receiver Bellman Visit 868 BE1441 wall mount bracket -without Bed shaker BE1270-without

€270.00

x 1

bouton poussoir, Emetteur Bellman visit 868 BE1420

Pushbutton Transmitter Bellman visit 868 BE1420

€164.00

x 1

Quantity

Follow sending with tracking numbers

The BE1420 Visit Pushbutton Transmitter is a radio transmitter within the Bellman Visit System for indoor use and outdoor use in sheltered locations, which transmits signals to the receivers in the Bellman Visit System when the Pushbutton is pressed.
The Pushbutton Transmitter can transmit different Signal Patterns to the receivers in the Visit System depending on how it has been set up.

The LED lights up when the Pushbutton Transmitter transmits radio signals.

Technical information

Power supply Battery power: 6 V PX28A alkaline 6 V PX28L lithium
Operating time: Approximately 2 years
Power consumption: Active: 35 mA Idle position: < 0,05 μA

Radio function
Radio frequency: 868,3MHz
Number of Radio Keys: 64 Radio Keys as standard. Special software can be used to increase these to 256 Radio Keys in increments of 64 per software purchase. Contact the nearest supplier for further information.
Coverage: The normal coverage between a transmitter and receiver in the Bellman Visit 868 System is approximately 200 metres with a clear line of sight. Coverage is reduced if walls and large objects screen off the signals. Any thick walls constructed of reinforced concrete will greatly affect coverage. The system may also be affected by radio transmitters such as TV transmitters, computers, mobile phones, etc. This means that a unit may work perfectly in one part of the room but not at all in another.

Activation: Via test button
Additional information: For indoor use and outdoor use in a protected location. Will not withstand water or rain!

Dimensions WxHxD: 48 x 66 x 23 mm
Weight: With battery: 50 g Without battery: 40 g
Colour: White with grey pushbutton.

The BE1441 Flash Receiver is a receiver within the Visit system for indoor use, which attracts the attention of the user with a flashing light, light signal, and also by vibration if a BE1270 Bellman Bed-shaker (accessory) is connected.

It is activated via radio signals from one of the Visit System transmitters or via direct connection to an analogue telephone socket.

The flash head can be rotated to point in the direction required
The flash head can, for example, be pointed towards a wall to prevent dazzle.

A short press on the Test Button activates BE1441 so that it repeats its last indication.

In the box:
- Flash receiver
- Power adapter
- Door transmitter
- Telephone cable and adapter
- Allen key
- Getting started guide

Reference Bellman Care

In stock 992 Items

Data sheet

reference: BE1441 / BE1420
Size: 70 x 140 mm
signaling: with light flashes
signaling: with bright icons
Compatibility: Bellman Visit 868
Bellman visit 868: receiver
Bellman visit 868: transmitter
guarantee: 2 years

Download

Brochure Bellman Visit p. 1 à 4

Download (1.5M)

BE1420 fiche technique et manuel

Download (2.75M)

BE1441 BE1442 fiche technique

Download (4.46M)

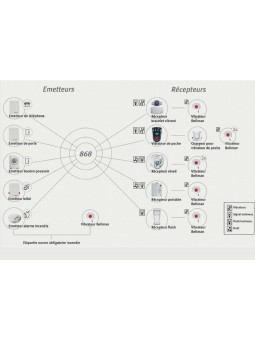

The Visit system includes a number of radio transmitters and receivers. Transmitters (doorbell detectors, telephone bell detector, smoke detector, etc.) detect different events in the vicinity and transmit a radio signal to the receivers. The receivers capture this signal and provide indications using light, sound and / or vibrations.

For exemple: When the doorbell rings, the transmitter signals the pager on your belt. The pager’s gentle vibrations will tell you that your guests have arrived; or, when the phone rings, the transmitter signals the Flash in your living room. The bright lights will show you that someone is trying to get a hold of you.
